stainless steel DSM wedge wire sieve bend screen for sugar filter

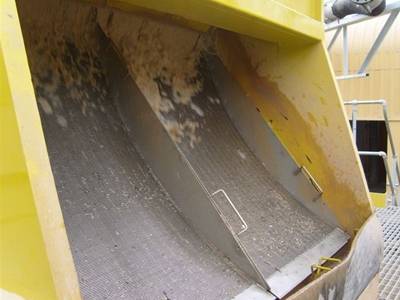

DSM screen is known as sieve bend after Dutch State Mines. This screen is
wide used in waste water cleaning up, sugar mill mineral processing
and processing.
DSM screen feature: Pneumatically operated washing jet for screen surface Unique
profile wire welded wedge wire sieve bend Safe and stand equipment
Here is a common specification of this screen:
| Material | Stainless steel SUS 304 |
| Dimension | 1840 mm width, 1600 mm arc length, radius (R) 60 degree |
| Slot opening | 0.5 mm |
| Wedge bar width | 1.5 mm |
| Opening area appr | 25% |
| Wedge profile v-rod type | SH55D |
| Support rods type | SR250 |
| End bar size | 25 mm |
| Width | 10 mm thick |
| Rib spacing | standard |
DSM screen hot specifications ordered by customers:
- DSM screen 1830 × 1600 mm, hole 0.7 mm.
- DSM screen mesh for sugar industry size 2400 × 1600 × 0.6 mm.
- DSM screen 45 degrees, aperture 0.75 mm, size length 2100 mm ×
width 1650 mm.
- DSM screen to separate plastic flake - 3/8" from water containing
fiber and floating material. Feed to the screen 5% HDPE flake in
water. To process 116.6 kg/min, 330 Liters/min.
2. Specifition:
(1) material:stainless steel 304,316,etc
(2) slot size:0.02-5mm or customer's requirement
(3) support bars pitch:1.5-3cm or customer's requirement
(4) wedge wire size:
1.5x2.2mm,1.5x2.5mm,2.3x3.6mm,1.8x4.3mm,3.0x4.7mm,etc
(5) support bars size:
2.3x2.7mm,2.3x3.6mm,3.0x4.7mm,3.7x5.6mm,3.3x6.3mm,etc
DSM screen panel |
Material: | stainless steel (304,316 etc.) |
Wedge Wire or Profile Wire (mm): | Width : 1.50 1.80 2.30 3.00 3.30 3.70 |
Height : 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00 |
Support Rod or Support Wire (mm): | Width : 2.30 3.00 3.30 3.70 |
Height : 2.70 3.60 4.70 5.60 6.30 |
Round : 2.50mm -- 6.0mm |
| Slot Opening Size (mm) | 0.02mm - 5 mm |
Length: | lengths up to 6 meters or customized as your request |
Width: | 25mm - 1200 mm or customized as your request |
Note: Other specifications can be customized according to your
requirement |
Advantages:
- A continuous slot opening which significantly increases the
available open area, thus providing greater access to the water
bearing zone (the aquifer)
- A "V" shaped profile wire which avoids clogging and ensures an
uninterrupted flow.
- A uniform and efficient well development due to the continuous slot
openin
3. Application :
1.) Widely used in vairous kinds of medium filtering
2.) As the fitting using in the water-treating equipment ( the
environment protection; the sea water transforms into the
industrial water and life use water desalination treatment; running
water treatment; softening treatment;
3.) The petroleum industry: the petroleum product terminal filters
and the chemical acid; the alkali liquid filters, the ethyl
alcohol;
4.) The organic solution recycling filter
