pakistan military sand filled hesco barrier blast gabion walls with
geotextile
MIL units enable the construction of rapid and efficient blast and
ballistic resistant perimeters and can be used in a wide variety of
configurations, from a simple boundary walls to city-like
fortifications.
Each unit has been developed to provide a flexible solution for a
wide range of protective and structural requirements. They are
available in a variety of different sizes and delivery systems.
All MIL products are delivered palletized with joining pins and can
be filled using minimal manpower and commonly available equipment.
Rapid Deployment
RAID has been designed to reduce the logistical problems
surrounding deployment of large quantities of barriers into
theatre, particularly for the construction of perimeter walls and
forward operating and patrol bases.
This unique delivery system permits the loading of pre-connected
lengths of MIL units directly into a specially modified ISO
shipping container engineered to conform to all ISO stacking and
transportation standards.
Corners can be easily formed, more units can be joined, and gaps in
the wall can be created for entry control points.
Protective Structures
HESCO Accommodation Bunker (HAB) will house up to 8 personnel,
providing blast and fragmentation protection, allowing personnel to
live and work in safety, when deployed in remote and unstable
environments; such as Forward Operating Bases, Company Outposts and
remote industrial facilities.
Lightweight Bunker Roof
HESCO Lightweight Bunker Roof is specifically designed to provide
collective protection, for living accommodation, field hospitals,
safe houses or overhead cover for ammunition and fuel stores.
The roof can be built on almost any walls capable of taking the
load that the roof will impose upon it.
Guard Post
The components of this set provide a small protective emplacement
and delivered on a single pallet.
Ballistic Resistant Body Armor
Using next generation composite materials Hesco provide light and
durable rapid response plates for law enforcement and military
personnel entering active shooter situations.
Defence of Yoston Gabion barriers
The Yoston Military defensive Barrier has been fortified by our defensive barriers and our work with the
military. From a simple perimeter wall to a complex base
infrastructure, HeslyBarrier products provide rapid expeditionary protection to personnel,
equipment and critical assets in any terrain.
Specification:
1. Material: Low carbon steel wire, Stainless steel wire
2. Wire Diameter: 3mm, 4mm, 5mm, 6mm etc.
3. Spring Wire: 3mm, 4mm, 5mm, 6mm etc.
4. Mesh Hole: 50mm x 50mm, 75mm x 75mm, 76.2mm x 76.2mm, 100mm x
100mm etc.
5. Geotextile: Heavy duty non-woven polypropylene
6. Finish:Hot-dipped galvanized, Electro galvanized, Galfan etc
Features:
- Easy to handle and install
- High tensile and anti-impact capability
- Long life, regular use
- Can be filled with sand, earth, cement, stone.
Applications include:
- Perimeter security
- Defensive barriers
- Equipment revetments
- Ammunition compounds
- Personnel bunkers
- Observation points
- Guard posts
- Ammunition and explosives stores
- Contraband search areas
- Highway checkpoints
- Border crossing checkpoints
- Protecting existing structures
- Traffic management
- Hostile vehicle mitigation

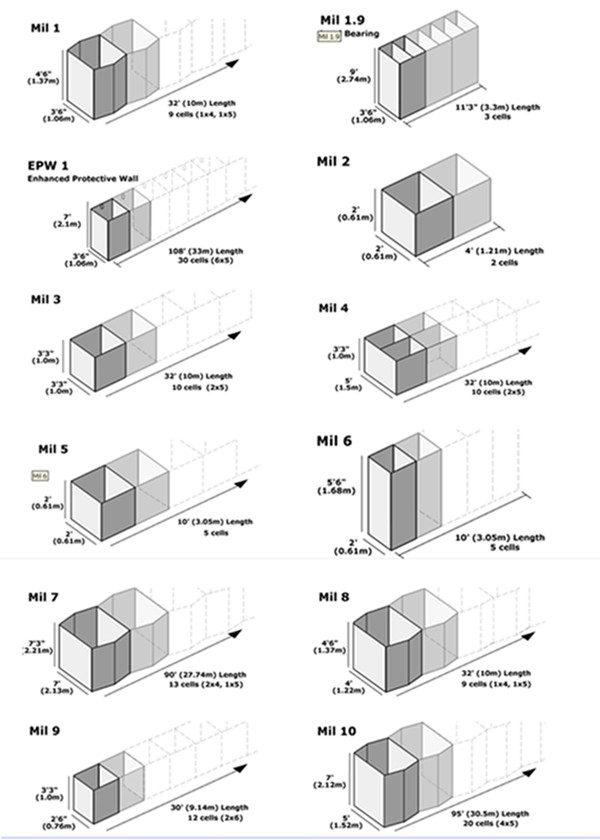

| Hesco Barriers |
| PRODUCT | HEIGHT | WIDTH | LENGTH |
| MIL1 | 54''(1.37M) | 42''(1.06M) | 32'9''(10M) |
| MIL2 | 24'' (0.61M) | 24''(0.61M) | 4'(1.22M) |
| MIL3 | 39''(1.00M) | 39''(1.00M) | 32'.9''(10M) |
| MIL4 | 39''(1.00M) | 60''(1.52M) | 32'.9''(10M) |
| MIL5 | 24''(0.61M) | 24''(0.61M) | 10'(3.05M) |
| MIL6 | 66''(1.68M) | 24''(0.61M) | 10'(3.05M) |
| MIL7 | 87''(2.21M) | 84''(2.13M) | 91'(27.74M) |
| MIL8 | 54''(1.37M) | 48''(1.22M) | 32'.9''(10M) |
| MIL9 | 39''(1.00M) | 30''(0.76M) | 30''(9.14M) |
| MIL10 | 87''(2.21M) | 60''(1.52M) | 100'(32.50M) |
| MIL11 | 48''(1.22M) | 12''(0.30M) | 4'(1.22M) |
| MIL12 | 84''(2.13M) | 42''(1.06M) | 108'(33M) |
Contect Details :
Anping Yoston Metal Wire Mesh Co.,Ltd.
No.56 Yuhua South Road , Anping Hebei China
Tel / Wechat / Whatsapp: +86 15833839680
Email: yoston@foxmail.com
