Military gabion blast wall hesco bastion bunker with sand filled

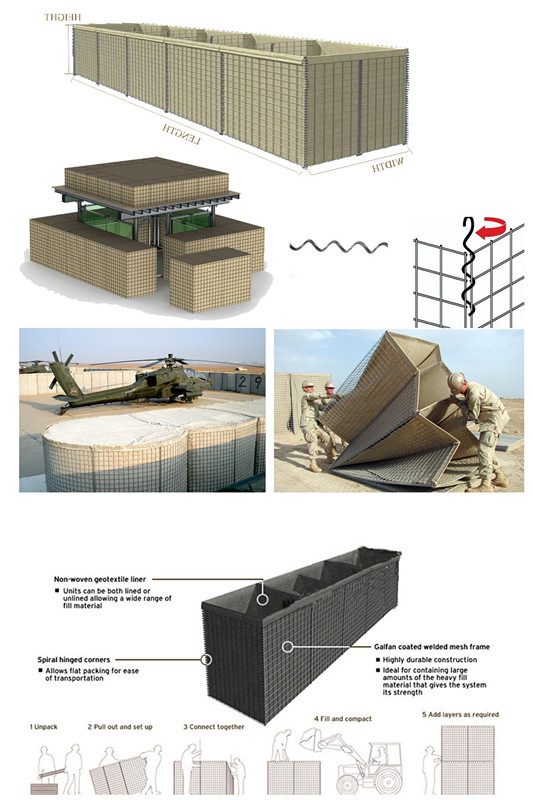

Hesco barrier also named as Hesco bastion, Hesco defense wall, sand
cage, welded gabion box, etc. It is a prefabricated, multi-cellular
system, made of zinc coated steel welded mesh and lined with
non-woven geotextile. Units can be extended and joined using the
provided joining pins. It is easy installed with using minimal
manpower and commonly available equipment. After extended, it is
filled into sand,stone,then hesco barrier like a defence wall or
bunker,it is widely used for military fortification and flood
control.Accessories Supplied With Carrier Units.
Specification:
1. Material: Low carbon steel wire, Stainless steel wire
2. Wire Diameter: 3mm, 4mm, 5mm, 6mm etc.
3. Spring Wire: 3mm, 4mm, 5mm, 6mm etc.
4. Mesh Hole: 50mm x 50mm, 75mm x 75mm, 76.2mm x 76.2mm, 100mm x
100mm etc.
5. Geotextile: Heavy duty non-woven polypropylene
6. Finish:Hot-dipped galvanized, Electro galvanized, Galfan etc
| Hesco Barriers |
| PRODUCT | HEIGHT | WIDTH | LENGTH |
| MIL1 | 54''(1.37M) | 42''(1.06M) | 32'9''(10M) |
| MIL2 | 24'' (0.61M) | 24''(0.61M) | 4'(1.22M) |
| MIL3 | 39''(1.00M) | 39''(1.00M) | 32'.9''(10M) |
| MIL4 | 39''(1.00M) | 60''(1.52M) | 32'.9''(10M) |
| MIL5 | 24''(0.61M) | 24''(0.61M) | 10'(3.05M) |
| MIL6 | 66''(1.68M) | 24''(0.61M) | 10'(3.05M) |
| MIL7 | 87''(2.21M) | 84''(2.13M) | 91'(27.74M) |
| MIL8 | 54''(1.37M) | 48''(1.22M) | 32'.9''(10M) |
| MIL9 | 39''(1.00M) | 30''(0.76M) | 30''(9.14M) |
| MIL10 | 87''(2.21M) | 60''(1.52M) | 100'(32.50M) |
| MIL11 | 48''(1.22M) | 12''(0.30M) | 4'(1.22M) |
| MIL12 | 84''(2.13M) | 42''(1.06M) | 108'(33M) |
Application:

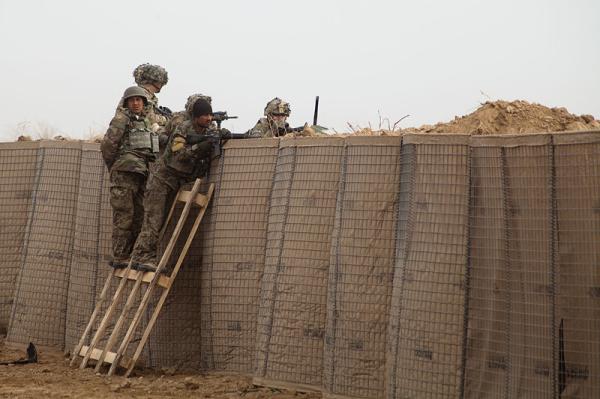

- Defensive firing positions
- Highway checkpoints
- Border crossing checkpoints
- Protection existing structures
- High way traffic management
- Flood control
- Perimeter security and defence walls
- Equipment revetments
- explosive and contraband search areas
- Ammunition compounds
- Personnel and material bunkers
- Observation points
- Water courses
- Emergency flood deployment
- Erosion control
- Retaining walls
Features:
- Easy to handle and install
- High tensile and anti-impact capability
- Long life, regular use
- Can be filled with sand, earth, cement, stone.
