Powder coated Aluminum expanded metal mesh screen panel for wall
facade cladding
Expanded metal mesh which can be used for exterior facade is a form of metal sheet
with various shaped openings in the area. It can be made of a range
of materials, such as carbon steel, aluminum metal, stainless steel
metal, nickel metal. But aluminum expanded metal mesh is the most
common than others because of its lighter weight and better
corrosion resistance. Besides, after being expanded by machine, the
expanded metal mesh becomes stronger, lighter, and more rigid as
well as having a skid resistant surface. With so many good
features, it becomes a new type of building materials mainly used
as elegant building exterior facade. It is specially designed to
minimize installation time and installation cost. It can be widely
used in various kinds of buildings, office building, shopping mall
and so on. Its high visibility and guarding properties can let you
benefit a lot.
By using the advanced production technology and equipment to ensure
the quality of the metal mesh, we can offer you various kinds of
expanded metal facade mesh in different sizes to meet your special
requirement.
Production process
Expanded: The expanded process is using the automatic expanded machines to
cut the metal sheet in the transverse direction and at the same
time stretch in length without loss the material. And then pass
through a cold rolled reducing mill. During the process the length
of the sheet is prolonged about 5%, but the width of the sheet
remains the same.
Surface processing: anodizing aluminum expanded metal mesh, powder coated aluminum
expanded metal mesh, and PVC coated aluminum expanded metal mesh,
etc.
Specifications
- Material: low carbon steel, aluminum metal, stainless steel metal, nickel
metal.
- Hole shape: diamond, hexagon, fan shaped holes.
- Surface treatment: PVC coated, galvanized, powder coated, anodize oxidation.

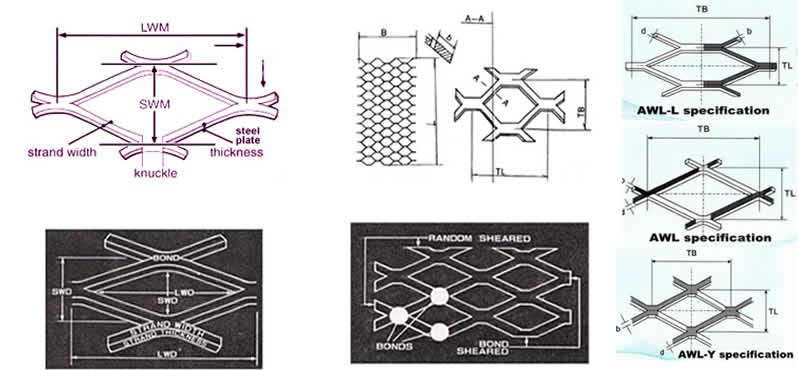

- LWM: 12.5 - 200mm.
- SWM: 5 - 80mm.
- Thickness: 0.5 - 8mm.
- Panel or roll width: 36 inches, 1 meter, 48 inches, 60 inches.
- Panel or roll length: from 72 inches to 150 feet.
- Note: other width or length also can be made.
Material
| Aluminum, Brass, Columbium, Copper, Gold, Inconel, Nickel, Nickel
Alloys, Phosphor Bronze, Platinum, Silver, Stainless Steel, Low
Carbon Steel, Tantalum, Titanium, Zinc, Zirconium, etc.
|
| Hole Shape | Diamond hole, Hexagonal hole, Round hole, Decorative hole
|
| Thickness | 2.0mm, 2.5mm, 3.0mm, 3.5mm, 4.0mm, 4.5mm, 5.0mm
|
| Width | Max 3400mm
|
| Dimension | LWD: 25-300mm SWD:10-120mm
|
| Surface treatment | For aluminum material | - Without treatment is ok - Anodized - Powder coated - PVDF
|
| For iron steel material | - Galvanized: Electric galvanized, Hot-dipped galvanized - Powder coated - Spray painted |
Features
Application

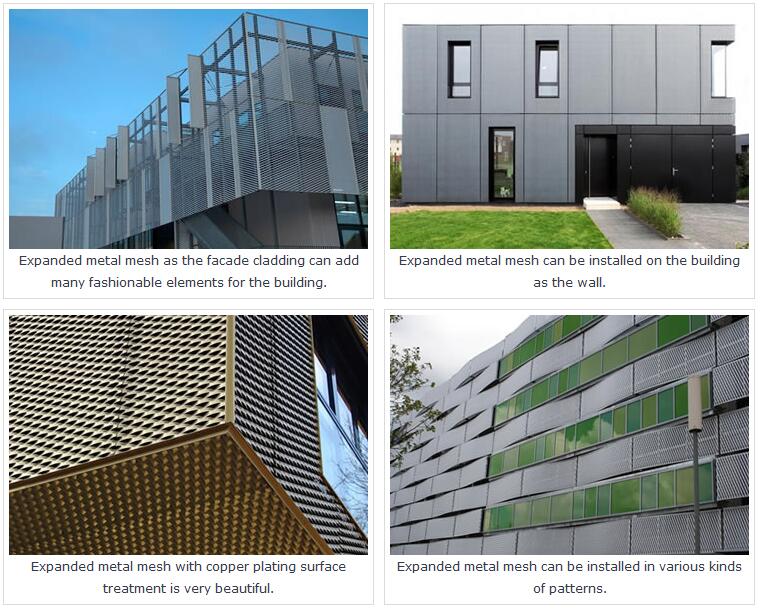

Expanded metal building facade mesh is strong and beautiful and
full of many fashionable elements. so it is widely used in
buildings, for example building exterior facade in working,
shopping, or other public places. Besides, also can be used in
working platforms, escalators, and walkways.
The aluminum expanded sheet can be used as the curtain wall or
ceiling of the hotel, airport, airway station, conference room,
office building, stadium etc. Also, it can be used as the
protection guard of vehicle, the machine, speaker, air conditioning
equipment etc. Moreover, it can be used for fencing, platform,
decoration and furniture
