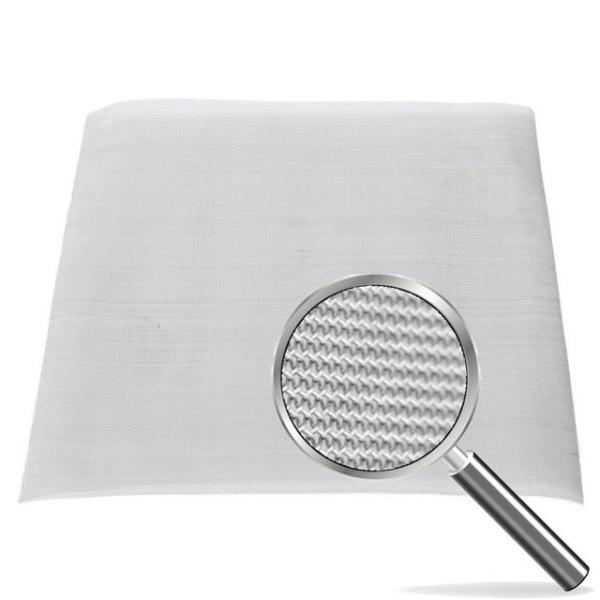

Gr1 Gr2 50 micron pure titanium woven wire mesh netting for medical
Introduction
Titanium mesh is mainly used in acid and alkali conditions
screening and filtration or gas, liquid filtration and other media
separation. There are plain weave, twill weave, dense weave pattern
three kinds of methods. Due to more difficult titanium wire
drawing, drawing relatively skilled domestic finest titanium wire
can be 0.1mm, low elongation titanium wire, high strength,
elasticity, flexibility and low. The greatly limits the production
of high mesh titanium mesh. Titanium mesh specifications of a
project --100 head. Anping wire mesh has many years of experience
in production of titanium mesh filter performance and stability,
fine features.
Plain titanium mesh
Is the most common method of weaving, the main feature is the warp
and weft density of the same wire diameter.
Twill titanium mesh
Twill titanium mesh for petroleum, chemical industry, chemical
fiber, aerospace and other industries, with good acid and alkali,
high temperature, high tensile strength and wear resistance
properties.
Titanium dense grain network
Plain weave titanium profiling, twill weave titanium dense grain
network performance: a filter stable performance, fine features.
Uses: used in aerospace, petroleum, chemical and other industries.
Material: TA1, TA2, GR2, GR3, R50250, titanium, etc.
Material surface: a black (surface coating containing graphite
milk) 2 Bright (no milk graphite coating)
1. Material:T1,TA2,GR2 Etc.
2. Mesh:20-100mesh
3. Aperture:0.15--0.9mm
4. Certificate: ISO9001:2008/EN10204
Woven Titanium Wire Mesh is mainly used for acid, alkali conditions sieving and filtering or gas, liquid filtration and separation with other media. have plain weave, twill weave,Dutch weave 3 methods.
Specification Table:
| SR.NO. | MESH | WIRE DIA. | APERTURE | WEAVING | GRADE |
| | | MM | MM | | |
| 1 | 10 | 0.50 | 2.04 | PL/TW | GR.1 Or GR.2 |
| 2 | 16 | 0.30 | 1.29 | PL/TW | GR.1 Or GR.2 |
| 3 | 20 | 0.45 | 0.82 | PL/TW | GR.1 Or GR.2 |
| 4 | 20 | 0.50 | 0.77 | PL/TW | GR.1 Or GR.2 |
| 5 | 30 | 0.20 | 0.65 | PL/TW | GR.1 Or GR.2 |
| 6 | 40 | 0.18 | 0.46 | PL/TW | GR.1 Or GR.2 |
| 7 | 50 | 0.17 | 0.34 | PL/TW | GR.1 Or GR.2 |
| 8 | 60 | 0.12 | 0.30 | PL/TW | GR.1 Or GR.2 |
| 9 | 80 | 0.10 | 0.22 | PL/TW | GR.1 Or GR.2 |
| 10 | 80 | 0.11 | 0.21 | PL/TW | GR.1 Or GR.2 |
| 11 | 80 | 0.12 | 0.20 | PL/TW | GR.1 Or GR.2 |
| 12 | 100 | 0.10 | 0.15 | PL/TW | GR.1 Or GR.2 |
Material chemical component :
| N | C | H | Fe | O | Al | V | Pa | Mo | Ni | Ti |
| Gr1 | 0.03 | 0.08 | 0.015 | 0.2 | 0.18 | / | / | / | / | / | bal |
| Gr2 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | / | / | / | / | / | bal |
| Gr3 | 0.05 | 0.08 | 0.015 | 0.3 | 0.35 | / | / | / | / | / | bal |
| Gr4 | 0.05 | 0.08 | 0.015 | 0.5 | 0.4 | / | / | / | / | / | |
| Gr5 | 0.05 | 0.08 | 0.015 | 0.4 | 0.2 | 5.5~6.75 | 3.5~4.5 | / | / | / | bal |
| Gr7 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | / | / | 0.12~0.25 | / | / | bal |
| Gr9 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | 2.5~3.5 | 2.0~3.0 | / | / | / | bal |
| Gr12 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | / | / | / | 0.2~0.4 | 0.6~0.9 | bal |
Tensile Requirement:
| Grade | Tensile strength(min) | Yeild strength(min) | Elongation(%) |
| ksi | MPa | ksi | MPa |
| Gr1 | 35 | 240 | 20 | 138 | 24 |
| Gr2 | 50 | 345 | 40 | 275 | 20 |
| Gr3 | 65 | 450 | 55 | 380 | 18 |
| Gr4 | 80 | 550 | 70 | 483 | 15 |
| Gr5 | 130 | 895 | 120 | 828 | 10 |
| Gr7 | 50 | 345 | 40 | 275 | 20 |
| Gr9 | 90 | 620 | 70 | 438 | 15 |
| Gr12 | 70 | 438 | 50 | 345 | 18 |

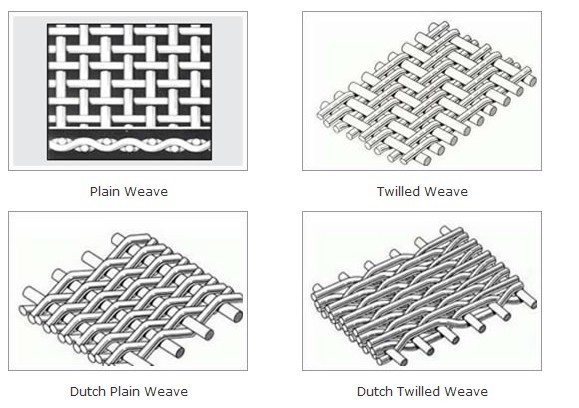

Weaving Type :
