316 Marine Grade Stainless Steel Wire Mesh Panels Plain Weave For Window / Door

    Buy cheap 316 Marine Grade Stainless Steel Wire Mesh Panels Plain Weave For Window / Door from wholesalers

    Buy cheap 316 Marine Grade Stainless Steel Wire Mesh Panels Plain Weave For Window / Door from wholesalers
    • Buy cheap 316 Marine Grade Stainless Steel Wire Mesh Panels Plain Weave For Window / Door from wholesalers
    • Buy cheap 316 Marine Grade Stainless Steel Wire Mesh Panels Plain Weave For Window / Door from wholesalers
    • Buy cheap 316 Marine Grade Stainless Steel Wire Mesh Panels Plain Weave For Window / Door from wholesalers
    • Buy cheap 316 Marine Grade Stainless Steel Wire Mesh Panels Plain Weave For Window / Door from wholesalers

    316 Marine Grade Stainless Steel Wire Mesh Panels Plain Weave For Window / Door

    Ask Lasest Price
    Brand Name : Yoston
    Model Number : Stainless Steel Wire Mesh
    Certification : ISO 9001:2008 / CE / EN / SGS
    Payment Terms : L/C, T/T
    Delivery Time : 5-8 days
    • Product Details
    • Company Profile

    316 Marine Grade Stainless Steel Wire Mesh Panels Plain Weave For Window / Door

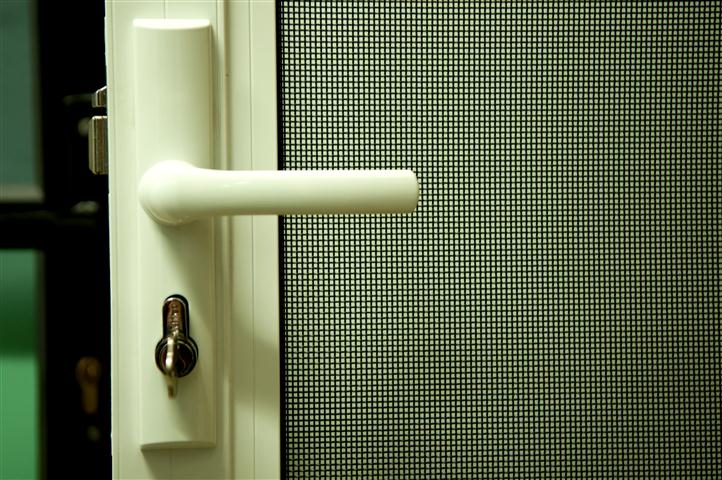

    316 Marine grade stainless steel security mesh screen for window and door


    this mesh revolutionary new security screen made from high-tensile marine grade stainless steel, which provides total security with unspoiled views without the need for bars and grilles. The most important feature of this product is that it provides security to a window without compromising safety.


    this mesh have other name as follows:

    kidscreen secutiry screens
    316 marine grade black stainless steel mesh
    Door security screens
    316 marine grade security screen
    Bulletproof mesh


    316 marine grade stainless steel, it's the true" Marine Grade", having best corrosion resistance than 304 and other stainless steel alloy. 316 steel has 2-3% Molybdenum included in its chemical composition which prevents specific forms of corrosion and enhances its corrosion resistance. Specially in sea side, 304 will easier to get rust.

    Our Testing Standards
    1. Diagonal Deviation, strict controls of +/- 5mm
    2. Fine Grinding - The Surface Treatment Of 0.03mm
    3. Double Plain Weave High Hardness To Bulletproof
    4. Precipitation Of Metal Cons ,Non Magnetic
    5. Steel Wire After Micron Grade Precision Machining


    Material: SS304,SS316 Grade
    Wire Diameter: 0.8mm
    Mesh: 11 x 11 (11mesh per inch)

    Popular panel size:
    750mm x 2000mm (2400mm)
    900mm x 2000mm (2400mm)
    1200mm x 2000mm (2400mm)
    Max Width:1.5m

    Extra Mesh:
    10x10 Meshx0.9mm,10x10Meshx1.2mm, 10x10Meshx0.8mm
    12x12 Meshx0.58mm, 12x12 Meshx0.7mm

    Surface Treatment: Black powder coated

    Packing:According to customer’s requirement, we did waterproof paper cover, 25pcs / 50 pcs per Wooden Case


    Specfication:
    Material
    Mesh

    Wire Dia.

    mm / inch

    Open

    mm

    Open Area

    %
    SS 316 or 304
    10 x 10
    0.9mm /0.035"
    1.64
    41.7
    SS 316 or 304
    10 x 10
    1.2mm /0.028"
    1.34
    27.8
    SS 316 or 304
    10 x 10
    0.8mm / 0.032"
    1.74
    46.9
    SS 316 or 304
    10 x 10
    1.15mm / 0.045"
    1.39
    29.9
    SS 316 or 304
    11 x 11
    0.8mm /0.032"
    1.5
    42.5
    SS 316 or 304
    11 x 11
    0.7mm / 0.027"
    1.6
    48.3
    SS 316 or 304
    12 x 12
    0.7mm / 0.027"
    1.42
    44.8
    SS 316 or 304
    12 x 12
    0.58mm / 0.023"
    1.54
    52.8

    Standards:

    1. Knife Shear Test(AS5039-2008)
    2. Anti-Jemmy Test(AS509-2008)
    3. Pull Test(AS5039-2008)
    4. Durable more than 10 years(AS2331.31-2001)
    5. 3006 Hour Salt Spray Tests, 534 hours UV Test
    6. Aluminium Frame Tests
    7. Stainless Mesh Tests

    .

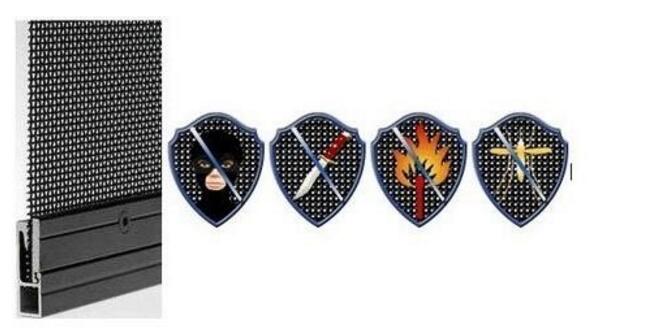

    Feature



    1. Equal wire tensile strength,Equal wire diameter
    2. Equal mesh size
    3. Flat and straight surface
    4. No mesh fault whatever angle you have
    5. Meet Australia standard
    In order to reduce the product cost, galvanized iron wire can be instead of stainless steel wire, It keeps all features of stainless steel security screen.
    Meet Australia standard Such As Equal wire Diameter, Equal and Flat surface.


    Advantages :


    1. Bulletproof function
    2. Security
    3. Prevent mosquito, flies, mice, snake...
    4. Beautiful
    5. Resist corrosion and sunshine
    6. Air circulation
    7. Daylighting is good.



    Applications


    Security Door screen, sliding door screen,
    security window screen, fly ,insect screen
