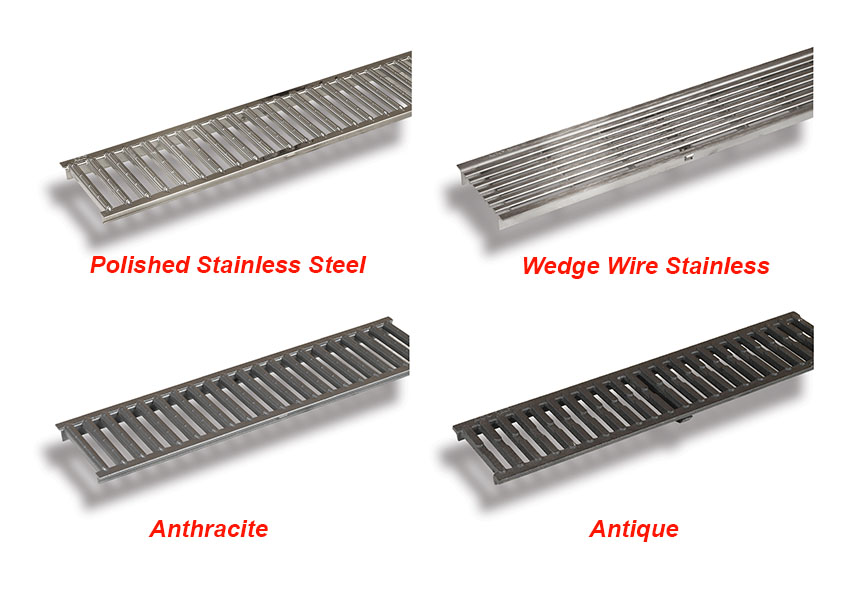

304 Stainless steel wedge wire screen plate panel for heel guard
grating
Our stainless steel wedge wire heel guard gratings are all custom made and can be designed and built to fit any
screening equipment in any specified width and length. Need a
stainless steel flat panel screen on an extra-large scale? No
problem. Plus, size, shape and spacing of profile wire are
engineered to meet your special job requirements. Individual wire
on the working surface of each wedge wire flat panel screen can be
manufactured at a tilt to better serve your needs.
Application :
Use in the field of process, engineering such as sugar juice
filtration, waste water treatment, crude oil and natural gas
production and vessel internals solving problems of solid / liquid
and solid / gas separation, filtration of oils, greases, paints,
food products, water, fuels, liquid cooling agents, chemicals etc.
Features :
Accurate slot gap, high efficiency performance, stable structure,
anti-high temperature, anti-corrosive, good mechanical properties,
long-lasting and durable, safe and reliable, various field can be
applied.
Advantages :
A continuous slot opening which significantly increases the
available open area, thus providing a greater access to the water
bearing zone.
A 'V' shaped wedge wire which avoids clogging and ensures
uninterrupted flow.
A uniform and efficient well development due to the continuous slot
opening.
Offering great strength. precision, long service life.
2.Specifition:
(1) material:stainless steel 304,316,etc
(2) slot size:0.02-5mm or customer's requirement
(3) support bars pitch:1.5-3cm or customer's requirement
(4) wedge wire size:
1.5x2.2mm,1.5x2.5mm,2.3x3.6mm,1.8x4.3mm,3.0x4.7mm,etc
(5) support bars size:
2.3x2.7mm,2.3x3.6mm,3.0x4.7mm,3.7x5.6mm,3.3x6.3mm,etc
Wedge wire screen panel |
Material: | stainless steel (304,316 etc.) |
Wedge Wire or Profile Wire (mm): | Width : 1.50 1.80 2.30 3.00 3.30 3.70 |
Height : 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00 |
Support Rod or Support Wire (mm): | Width : 2.30 3.00 3.30 3.70 |
Height : 2.70 3.60 4.70 5.60 6.30 |
Round : 2.50mm -- 6.0mm |
| Slot Opening Size (mm) | 0.02mm - 5 mm |
Length: | lengths up to 6 meters or customized as your request |
Width: | 25mm - 1200 mm or customized as your request |
Note: Other specifications can be customized according to your
requirement |
