Decorative Flexible ferrule stainless steel rope cable mesh for
stair railing
Decorative Flexible ferrule stainless steel rope cable mesh for
stair railing is assembed by seamless ferrules and stainless steel wie
rope.Diamond mesh when it is stretched at 60° angle ( Option: 90°
angle ).
Details:
Material : Stainless steel 304, type 304 L, type 316, type 316L.
It is rhombus mesh, has excellent flexible performance,
virtually indestructible, mostbreaking resistant force,
most resisting rain, snow, hurricane.
As the material is virtually indestructible stainless steel, then
it can be safely contain any species on
land, in the air indoors or out.
No matter how large, how small, or how cunning you specimens are,
we assure their
complete security.
Advantages :
Stainless Steel Flexible Cable Rope Diamond Ferruled Mesh has characteristic property and capacity to replace other steel
wire mesh in certain application.Sometimes better.
- Unique design idea.3D-structure,Flexible,elegant,discreet,filigreed,multifuncational.
- Light weight,High open area % .
- Corrosion resistant,allows strongh airflow.
- Total pro-environment,recyclable,no toxic,non flammable.
- Maintenaance free,don't ask any special cleaning & coating.
- At least 10 years guaranteed.
Panel Shape:
Customized Rectangular panel shape.Trapezoid panel shape,Triangular
panel shape,circle panel shape,and other special shape.Customized
net height and length.
Feature:
A:Flexible,elegant,discreet,filigreed,multifunctional.
B:Light weight,easy to install.
C:Corrosion resistant,air good liquidly.
D:Total pro-environment,recyclable,no toxic.
E:No need special coating and cleaning.
F:Long using life at least 30 years.
Application:
- Building Facade screens,
- Green wall systems
- Balustrade & Railing
- Bird protection netting,
- Security platform fence. Isolate fence,Garden fence,
- Animal enclosures in zoo
Other Application:
- Animal Enclosure mesh
- animal cages, bird netting
- Agriculture
- Residential
- Sports
- Fall Security
- Ocean Park and other similar environments
- garden decoration and construction and renovation.
Order Guide
| 1. Available AISI 304 and 316 |  |
2. Cable diameter: 1.0 mm (7*7 ), ,1.5 mm (7*7 ), 2.0 mm (7*7 ) 3.0 mm (7*19) ,4.0 mm (7*19) |
| 3. Opening |
| Opening width ( OW ) 20mm - 200mm.Opening Height ( OH ) 35mm - 346mm |
| Opening | Cable Diameter |
| OW X OH | 1.0 mm | 1.5 mm | 2.0 mm | 3.0 mm | 4.0 mm |
| 25 mm x 43 mm | CD1025 | CD1525 | | | |
| 30 mm x 52 mm | CD1030 | CD1530 | | | |
| 35 mm x 61 mm | CD1035 | CD1535 | | | |
| 40 mm x 69 mm | CD1040 | CD1540 | CD2040 | | |
| 50 mm x 87 mm | CD1050 | CD1550 | CD2050 | CD3050 | CD4050 |
| 60 mm x 104 mm | CD1060 | CD1560 | CD2060 | CD3060 | CD4060 |
| 70 mm x 121 mm | CD1070 | CD1570 | CD2070 | CD3070 | CD4070 |
| 80 mm x 139 mm | CD1080 | CD1580 | CD2080 | CD3080 | CD4080 |
| 100 mm x 173 mm | CD10100 | CD15100 | CD20100 | CD30100 | CD40100 |
| 120 mm x 242 mm | CD10120 | CD15120 | CD20120 | CD30120 | CD40120 |
| 160 mm x 277 mm | CD10160 | CD15160 | CD20160 | CD30160 | CD40160 |
| 180 mm x 312 mm | CD10180 | CD15180 | CD20180 | CD30180 | CD40180 |
| 200 mm x 346 mm | CD10200 | CD15200 | CD20200 | CD30200 | CD40200 |
| Customized other size |

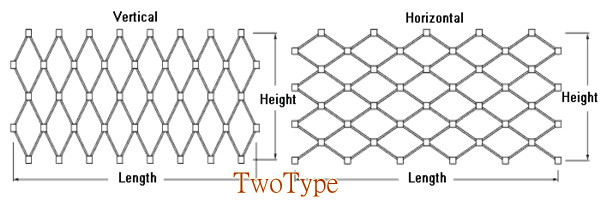

| 4. Opening Orientation : Horizontal ( H ) and Vertical ( V ) |
| Whatever horizontal or vertical opening orientation,expect net's
height and length can be processed. |
 |

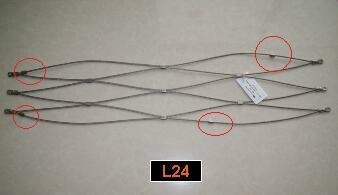

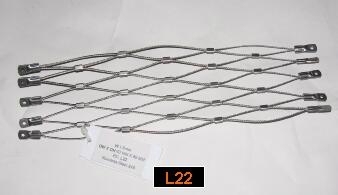

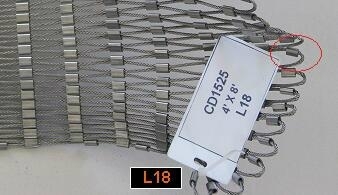

| 5 . Border plans |
| Border design plans is the different of mesh edge patterns. which
decide to the install methods will be choosed .the most popular
plans L10,L18,L22,L24 ... |
 |  |
 |  |
|
Contact us to know more |
6. Nets height and length,and Quantity.
7. Drawing is necessary if it is available
Order No : e.g. CD1560 - 60°- H - L18
other Specification for choosing:
| No. | Cable
Structure | Breaking force | Cable Diameter | Aperture |
| KN | (Inch) | (mm) | (mm) |
| F32120 | 7X19 | 7.38 | 1/8 | 3.2 | 120 x 208 |
| F32100 | 7X19 | 7.38 | 1/8 | 3.2 | 100 x 173 |
| F3290 | 7X19 | 7.38 | 1/8 | 3.2 | 90 x 156 |
| F24100 | 7X7 | 4.18 | 3/32 | 2.4 | 100 x 173 |
| F2490 | 7X7 | 4.18 | 3/32 | 2.4 | 90 x 156 |
| F2480 | 7X7 | 4.18 | 3/32 | 2.4 | 80 x 139 |
| F2470 | 7X7 | 4.18 | 3/32 | 2.4 | 70 x 121 |
| F20100 | 7X7 | 3.17 | 5/64 | 2.0 | 100 x 173 |
| F2090 | 7X7 | 3.17 | 5/64 | 2.0 | 90 x 156 |
| F2080 | 7X7 | 3.17 | 5/64 | 2.0 | 80 x 139 |
| F2070 | 7X7 | 3.17 | 5/64 | 2.0 | 70 x 121 |
| F1680 | 7X7 | 2.17 | 1/16 | 1.6 | 80 x 139 |
| F1670 | 7X7 | 2.17 | 1/16 | 1.6 | 70 x 121 |
| F1660 | 7X7 | 2.17 | 1/16 | 1.6 | 60 x 104 |
| F1650 | 7X7 | 2.17 | 1/16 | 1.6 | 51 x 87 |
| F1280 | 7X7 | 1.22 | 3/64 | 1.2 | 80 x 139 |
| F1270 | 7X7 | 1.22 | 3/64 | 1.2 | 70 x 121 |
| F1260 | 7X7 | 1.22 | 3/64 | 1.2 | 60 x 104 |
| F1250 | 7X7 | 1.22 | 3/64 | 1.2 | 50 x 87 |
